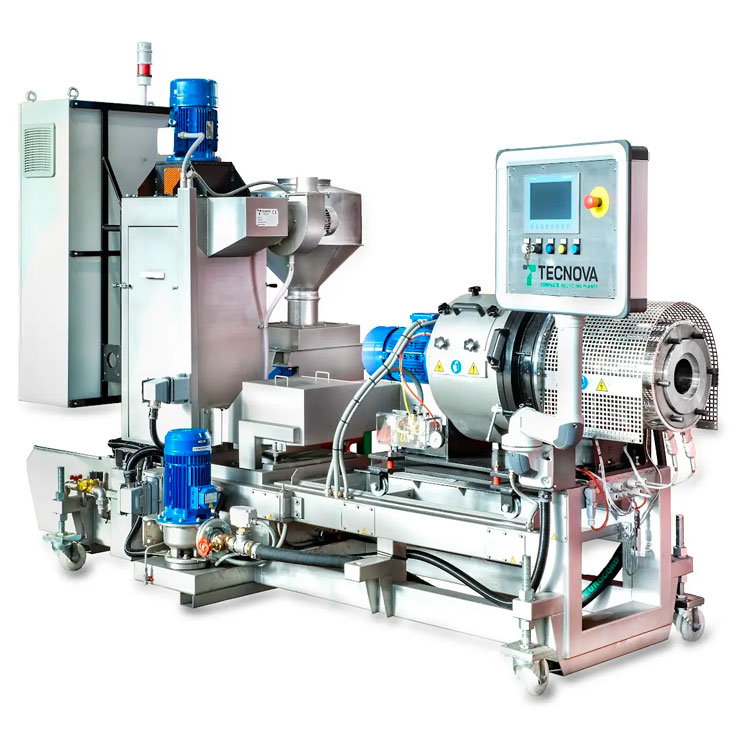

The WRT (Water Ring Tecnova) is an air-regulated horizontal cutting system designed for the granulation of complex post-consumer plastic materials.
The innovative air-regulated system allows for automatic and continuous control of cutting pressure. Unlike traditional units, where adjustment is performed by the operator, this system uses compressed air to:
- maintain constant blade pressure on the die
- stabilize the process throughout all processing phases
- eliminate errors related to manual calibration
Available in the following capacities: 150 kg, 400 kg, 700 kg, 1,000 kg, 1,500 kg, 2,000 kg, and 2,500 kg/hour

Two/three-way welded steel vibrating screen - stainless steel granule separation grid with holes diam. 8 - vibrating unit consisting of eccentric shaft/flywheels and counterweight

Internal movement controlled by 2.2-kW gear motor - min/max levels both visual via plexiglass panels and electrical with alarm indicator lamp - door for inspection and cleaning - cyclone for arrival of material complete with sleeve filters for air decantation - auger for extraction of milled material controlled by 4-kW AC gear motor with - general control and command panel with inverter, with in-built dosing synchronisation with forced feeding and alarm siren for min/max levels - lower part of silo in stainless steel.

vertical die face cutter mod. TTC with outputs 150-250-400-700-1000-1500 kg/h vertical die face cutter model TTC

Feeding and handling unit mod. DA/130, in stainless steel and complete with motor for material handling. Complete with control panel including the two inverter controls.

force-feed hopper with extruder connection - screw press driven by 9-kW AC motor with inverter - easily interchangeable LK3 feed nozzle - 2 additional inlets are provided at the top for any additional feeding.
